Product Name: Tungsten carbide 0.5mm micro endmill



Diameter: 1/8 or 3mm or 4m.
Length Of  Cut: both standard or customized metric and inch size are OK.
Shank Diameter: both standard or customized metric and inch size are OK.
Overall Length: both standard or customized metric and inch size are OK.

End mill Material: Solid Carbide, premium carbide
Flute number: 2 or 3 or 4
End: Square endmill or ball end mill
Finish: both Uncoated or coated are available
Helix: 30° or other degree, made based on the workpiece you are going to process with the end mill tools
RHS (Right Hand Spiral)
RHC (Right Hand Cut)
Center Cutting



Or other standard sizes and non-standard size.

We can help print your brand and logo on the container plastic box and each end mill tool.

Our Advantages:

We have complete control of the entire manufacturing process. We use the highest quality carbide rod and advanced grinding, inspection and coating equipment. We provide superior performance, with reliable and consistent quality- Every Time! Every Order!



Features for Tungsten carbide 0.5mm micro endmill



 Micro or miniature cutting tools are small end mill bits with an 1/8" or 3mm shank diameter, where the cutting diameter is usually smaller.  They are true mini end mill bits!  These bits come in many diameters from .005" to .120".  They also come in standard lengths of 1-1/2" OAL and extended lengths of 2-1/2" OAL.  Mini cutting tools are generally used on CNC machines for a variety of milling operations like milling molds, drilling, profiling, and engraving.  The printed circuit board industry uses a wide variety of PCB mills.  Miniature carbide end mills are available in square end, ball end and corner radius geometries.

solid carbide 1-6 flutes square end mills tungsten carbide flat milling cutters

flute

diameter

flute lengthoverall lengthshank diameterflute diameter

flute length

overall lengthshank diameter
0.3-0.61.550∅4∅51350∅6
0.7-0.82.550∅4∅61550∅6
∅1350∅4∅71860∅8
∅1.5450∅4∅82060∅8
∅2550∅4∅92275∅10
∅2.5650∅4∅103075∅10
∅3850∅3∅123075∅12
∅3.5950∅4∅1440100∅14
∅41050∅4∅1640100

∅16

flute diameterflute lengthoverall lengthshank diameterflute diameterflute length overall lengthshank siameter
∅1840100∅18∅41575∅4
∅2045100∅20∅52075∅6
∅31275∅4∅62475∅6
Material&Coating

taper cutting tools milling cutter ball end mill

100% raw material to guarantee the milling cutter high quality

Super coating to improve the milling cutter's life

ItemALTINTIALNTISINNANO
Hardness32002800360042(GPA)
Thickness2.5-32.5-333
Oxidation temp90080010001200
Friction coefficient0.30.30.450.4
ColorBlackVioletCopperBlue

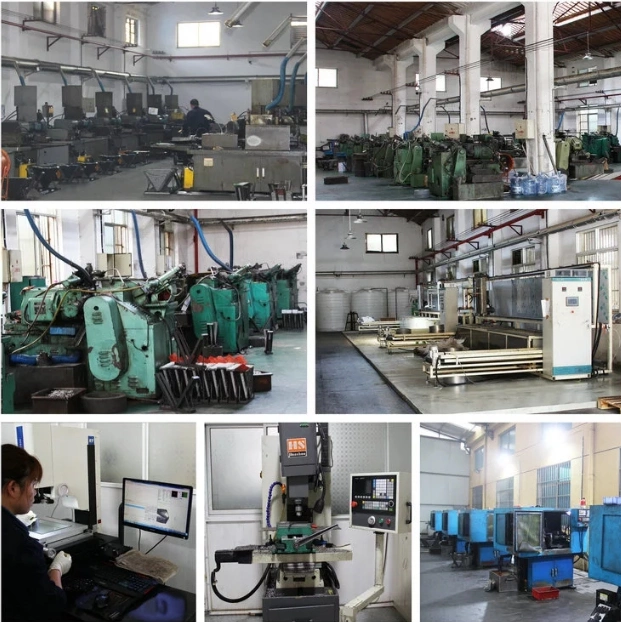

Advanced CNC grinding machines and test instrument guarantee milling cutter high precision

Michael deckelGermanyBig diameter milling cutter
ANCAAustraliaSmall diameter milling cutter
TTBSwitzerlandMicro diameter milling cutter
WALTERGermanyNon standard size cutter


Packaging & Delivery
Packaging Details
plastics pipe package and carton outside
Port
shanghai
Lead Time :
5-15days after receiving the deposit

2021 HSS Drill Bit Factory Customized Tungsten Carbide Micro Drill End Mill Drill Bit
2021 HSS Drill Bit Factory Customized Tungsten Carbide Micro Drill End Mill Drill Bit

MODEL
    Flute
Diameter
     Flute
    length
     shank            diameter
 overall
 length
number of flute

HRC 45/55/60
Square End Mill
1
3
6
50
2

Square End Mill
2
6
6
50
2

Square End Mill
4
11
6
50
2

Square End Mill
6
15
6
50
2

Square End Mill
8
20
8
60
2

Square End Mill
12
30
12
75
2

Square End Mill
14
45
14
100
2

Square End Mill
16
45
16
100
2

Square End Mill
18
45
18
100
2

Square End Mill
20
45
20
100
2
